OCI Private DNS: Architecture, Hybrid Configuration, and Troubleshooting Guide

A DNS failure in cloud infrastructure is a resolution problem, not a routing problem — yet it produces the same symptoms engineers associate with a severed network path. When an application fails to connect to a database, engineers instinctively check the plumbing:

• Security Lists & Network Security Groups (NSGs)
• Route Tables & Gateways
• FastConnect or VPN status

If the pipes are open but connection timeouts persist, running nslookup often reveals the true culprit: the hostname isn't resolving. Because a DNS failure prevents a TCP/IP connection from starting, it perfectly masquerades as a severed network path — the client never reaches the stage where packets would prove connectivity.

The OCI DNS lookup chain does follow a strict five-tier hierarchy whenever a compute instance inside a Virtual Cloud Network (VCN) requests resolution for a private hostname such as db.internal.company.com. If any link breaks, the whole chain fails — the query drops or returns an immediate NXDOMAIN error.

1. Local Operating System Cache: The OS checks local files (/etc/hosts or Windows local DNS cache) and local caching daemons (like systemd-resolved).
2. Kubernetes Cluster DNS (If Applicable): In Oracle Container Engine for Kubernetes (OKE) environments, the request hits the internal cluster CoreDNS service first to check for internal service names.
3. VCN Resolver (Fallback IP): Unresolved queries are routed directly to the internal OCI system identifier address: 169.254.169.254.
4. Private DNS Resolver Views: The VCN resolver looks up attached private zones inside the designated Resolver View for matching records.
5. External Forwarders / Public Root Servers: If no private match is found, the query targets configured outbound endpoints for on-premises routing or reaches out to public internet root name servers.

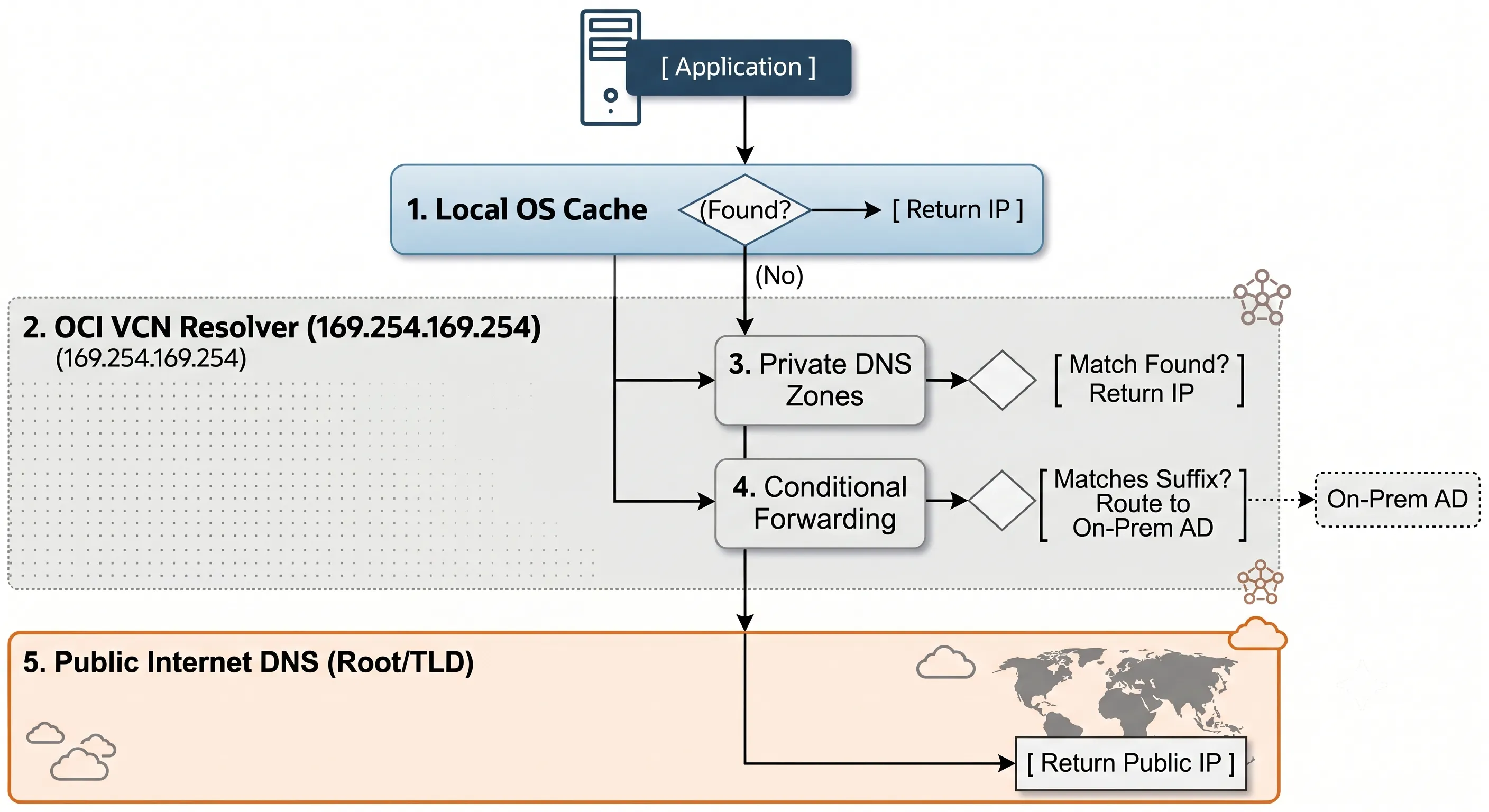

Figure 1 · OCI DNS lookup chain — from instance to resolver to zone

Oracle Cloud DNS does provide a managed resolver for every VCN automatically, delivered via DHCP. This VCN Resolver directs internal queries to the fallback IP 169.254.169.254 — the same metadata-service address pattern used across OCI for instance-level services. The resolver model is conceptually similar to AWS Route 53 Resolver Rules or Azure DNS Private Resolver, but is native to the OCI VCN boundary.

Table 1 · OCI DNS core components and their scope

OCI Private DNS does create default internal names ending in .oraclevcn.com for every VCN. For enterprise governance, you should use Custom Private DNS Zones (e.g., oci.company.com) that align with your corporate naming standards.

Essential Record Types

Hybrid cloud DNS does require bidirectional resolution across OCI, on-premises data centers, and other clouds. Enterprise environments need seamless name resolution without forcing every query through the public internet.

Setting up a hybrid architecture requires establishing point-to-point network paths (via FastConnect or IPSec VPN) followed by configuring OCI interface endpoints. Rather than allowing your entire private network space to intermingle blindly, OCI segments bidirectional traffic using distinct virtual interfaces:

• Inbound Endpoints: Act as an internal listener inside your VCN with a dedicated private IP. They receive incoming queries from your on-premises domain controllers or DNS appliances and map them to OCI private views.
• Outbound Endpoints: Act as an egress interface. When an instance inside OCI asks for an on-premises record, the VCN resolver forwards that query out through this interface toward your corporate data center DNS server.

Figure 2 · Hybrid DNS — bidirectional forwarding between OCI and on-premises

Bidirectional Configuration Example

To configure bidirectional resolution between OCI (oci.company.com) and on-premises (company.local):

These four scenarios account for the majority of production DNS incidents in OCI hybrid and Kubernetes environments. Each follows the same pattern: network connectivity appears healthy, but name resolution fails at a specific tier of the lookup chain.

OCI DNS diagnostics do follow a layered isolation approach — decouple network paths from configuration errors before touching resolver rules or zone records. Use this quick isolation matrix when triage urgency strikes. Run these terminal commands directly from the affected instance:

1. Isolate the Layer: Attempt to ping the destination IP directly. If the IP responds but the hostname times out, proceed down the DNS stack.
2. Query the Local Loopback: Run dig <hostname> to see which server is responding as the primary authority.
3. Bypass the OS and Hit the Fabric: Force a direct lookup to the OCI system resolver metadata IP using dig @169.254.169.254 <hostname> to see if the cloud infrastructure holds the correct record.
4. Test Payload Size and Ports: Force TCP transport via dig +tcp @169.254.169.254 <hostname> to check if security rules are dropping packets exceeding standard UDP limits.

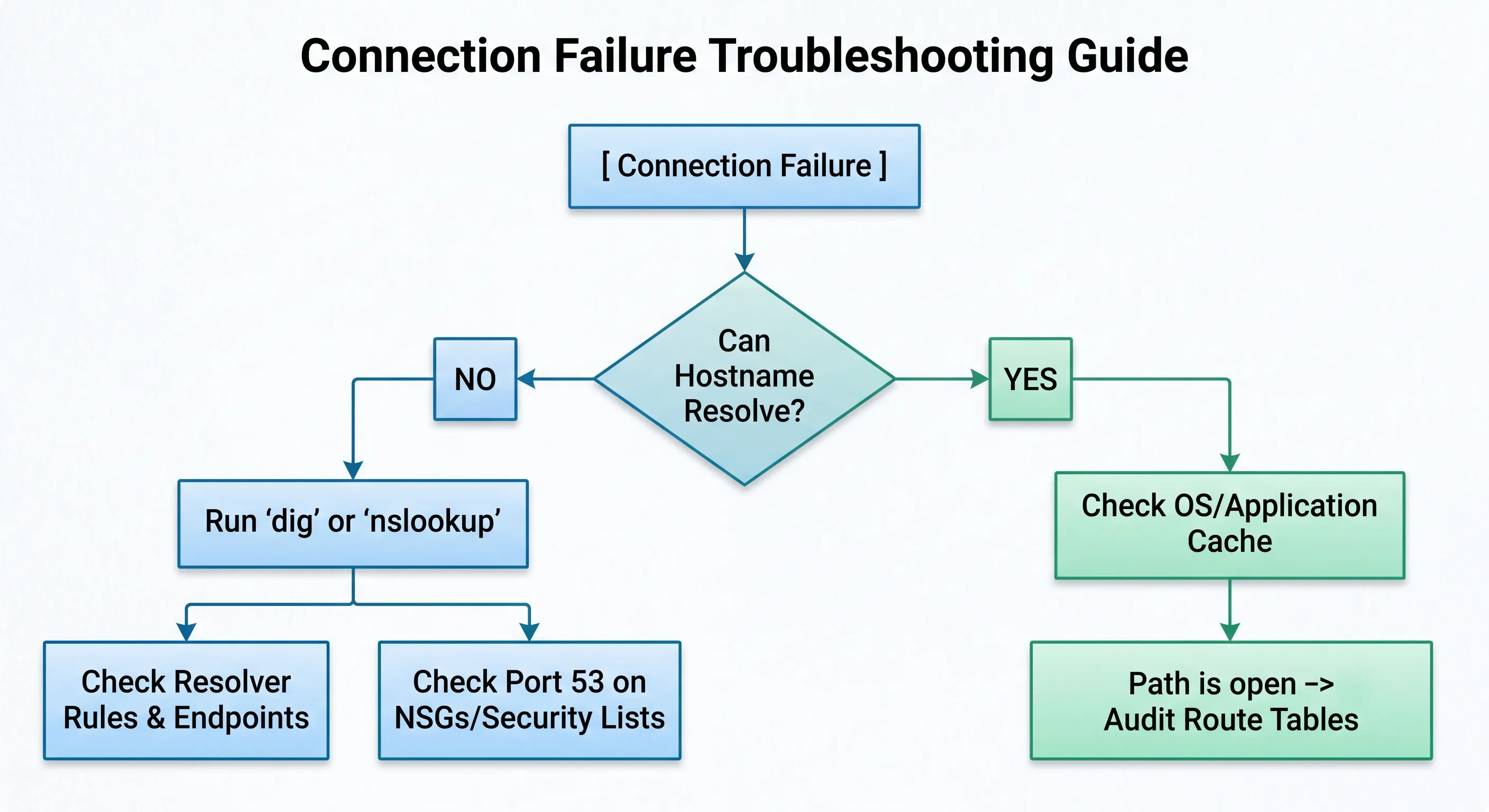

Figure 3 · Fast OCI DNS troubleshooting workflow

Key CLI Commands

Before closing any "network is down" incident, run through this checklist:

1. Never hardcode IP addresses; use Private DNS Zones.IPs change in cloud environments. DNS records with appropriate TTLs survive infrastructure churn.
2. Keep TTLs low (60–300s) for dynamic cloud resources.Short TTLs speed up failovers when instances are replaced or load balancer backends shift.
3. Consolidate architectures using a Hub-and-Spoke VCN DNS model.Prefer a central resolver hub over point-to-point forwarding meshes that become unmaintainable.
4. Open both UDP and TCP Port 53.Large responses and zone transfers require TCP. Blocking it causes intermittent failures that are hard to reproduce.
5. Verify OKE CoreDNS upstream points to 169.254.169.254.Pods inherit cluster DNS config — a misconfigured ConfigMap breaks resolution for every workload.

Next time someone says "the network is down," make your first question: Can the hostname resolve?
